If you’ve been following Midsouth Makers you know that we’ve been building. using and tweaking our 3D printers for a while now. Well thanks to a kind donation by LulzBot we now have a dedicated 3D printer at the space for member use! The printer is an AO-101, a MendelMax 1.5 variant.
The AO-101 currently uses 3mm filament and can print in ABS, PLA, Nylon and even Laywoo-D3 wooden filament. We have it setup to allow for remote printing on the LAN, using either OctoPrint or Repetier-Server. We recommend Repetier-Server due to it’s stability.
The AO-101 will be using a donated a 1U server as the host computer. Repetier-Server will allow you to load a gcode file and control the printer. We will be exploring webcam functionality for use in monitoring and in generating time-lapse print videos.
We will need the following items to get our new 3D printer setup and functional:
- Filament- Currently setup for 3mm:
- Webcam- Logitech C110 or C270 preferred (we’ve already tested and confirmed stability)
- 120mm silent PC case fan
- Build Area – 190mm 200mm 100mm
- Hot-end – Budaschnozzle 1.2
- Extrusion temperature range – 180C – 240C
- Filament- Currently setup for 3mm and can reliably print the following material types:
- Taulman 618 Nylon
- Laywoo-D3 Wooden Filament
- Heated Print Bed (65C-110C)
- Borosilicate Glass Bed with PET film on one side for printing with ABS and bare glass on the other side for printing with PLA
- Integrated Filament Mount for either loose coiled filament or spindles for spooled filament
Current AO-101 Modifications
- Nozzle Fan for printing in PLA installed but not hooked up
- RGB LED lighting (white for now)
More information on the new 3D printer can be found in our wiki.
If you’d like to use it, please contact Claudio, Ben, Dan or Cliff- more information will follow. In order to have access to the 3D printer without one of us present you will need to have had verified prior experience with a RepRap 3D printer, or attended an upcoming class on running & troubleshooting 3D printers(TBD) or be able to demonstrate the appropriate knowledge.
Please show our thanks and appreciation to LulzBot and the RepRap community!
We are slowly and painfully making progress with learning to fly our 3D Printed Mini Quadcopters. Cliff has helped us out with some tweaks & balances. Hopefully some more members will be interested in building their own, and will help add to the swarm.
Recently Ben, Cliff and Claudio have built Diametric’s Mini Quadcopter. We met a fellow RepRap user- Diametric- at this years Midwest RepRap Festival in Elkhart Indiana. He brought along a 3D printed quadcopter that he designed and built.
The quadcopters are remarkably inexpensive, the design, models and bill of materials can be found on Thingiverse. They are easy to build and easy to get off the ground. We’re still learning how to fly them however. While all three have taken flight, we have had some accidents and damaged the frames on 2 of them, twice. We’re not too worried when that happens, for we can always reprint the frame within about an hour and a half on one of our 3D printers.
We had a great time today at our first stained glass class. Here are some of the panels that were completed today.
We hope to have another class if there is interest for those that missed out this weekend. Rachel will come back and host another couple of classes covering the “Copper Foil” method of stained glass crafting hopefully before the end of the year.
Ever since the Palm Pre came out I’ve been in love with it’s inductive charging upgrade. Similarly to the Powermats, the charging base acts as a device stand with it’s integrated magnets in addition to charging your device without having to plug and unplug your device every time you need to use it. Once on the charger it outputs 5.50v. It’s a bit higher than other USB chargers I’ve used.
“Induction chargers typically use an induction coil to create an alternating electromagnetic field from within a charging base station, and a second induction coil in the portable device takes power from the electromagnetic field and converts it back into electrical current to charge the battery. The two induction coils in proximity combine to form an electrical transformer.” -Wikipedia

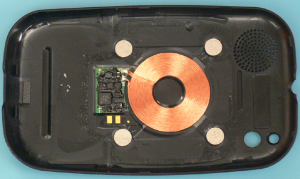

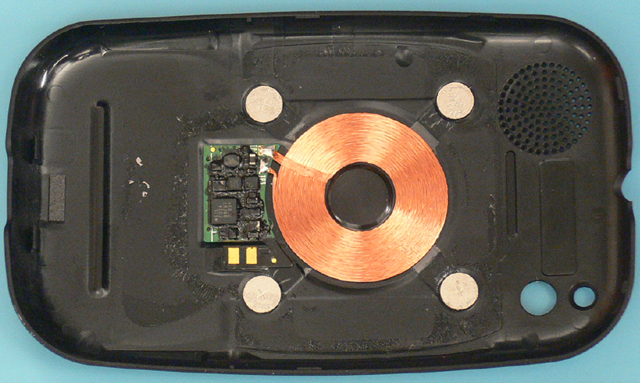

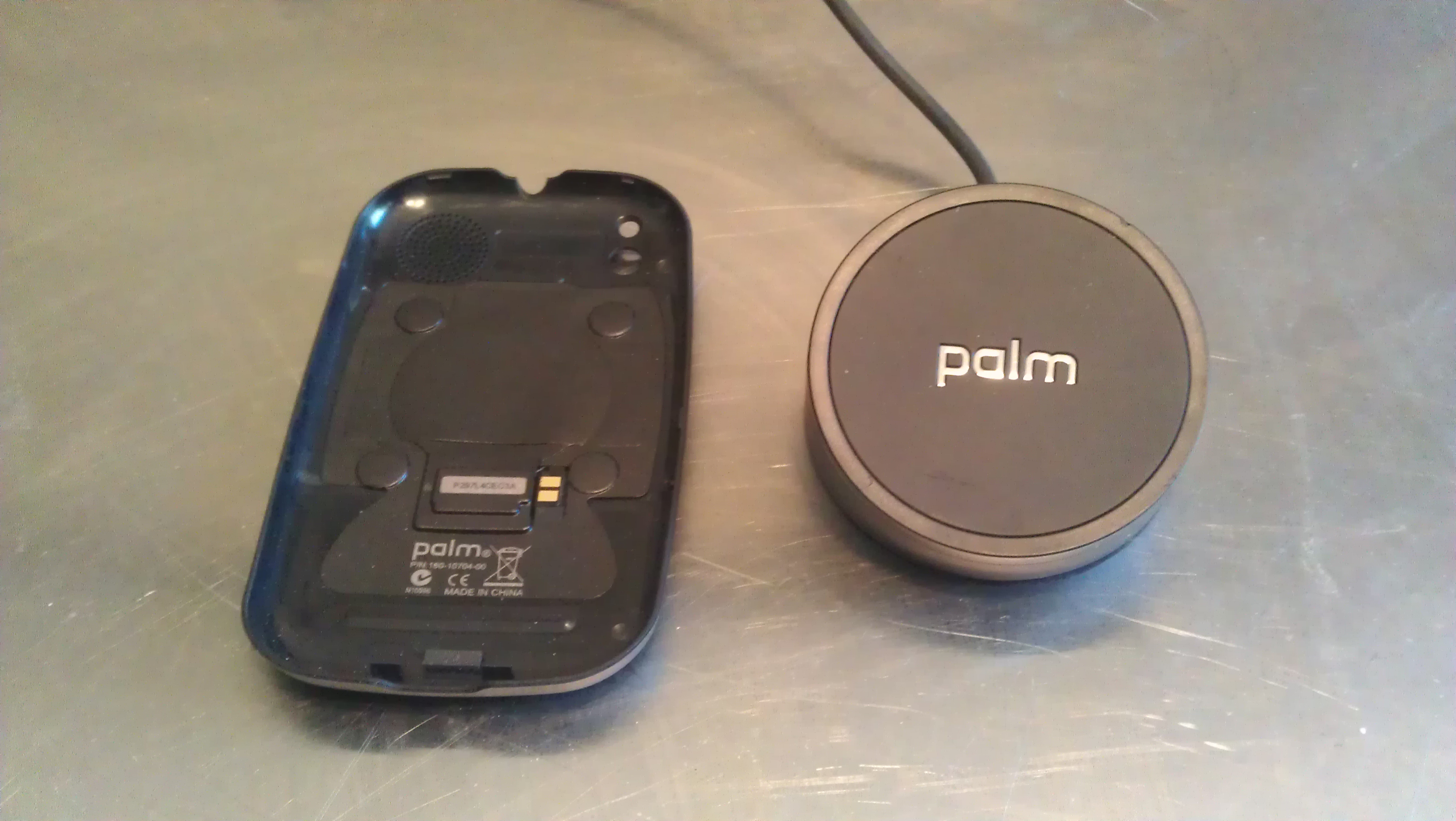

After peeling off part of the backing you can see the coil and it’s output circuitry. You can also see the four magnets it uses to attach itself to the charging base. They do a good job of holding my heavy phone and case to the base.

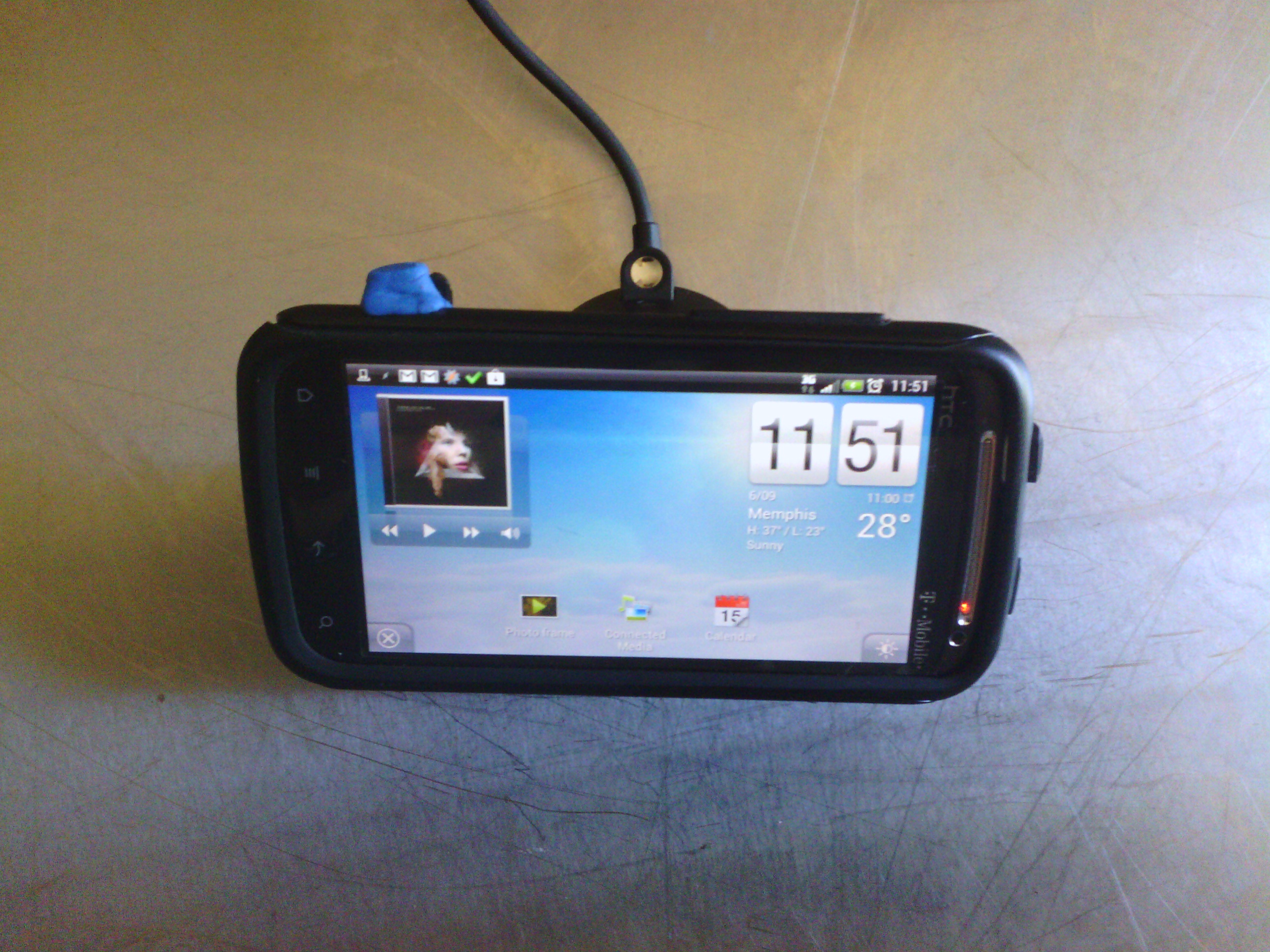

After finally getting in the Touchstone base and replacement back I decided to get this working over some lunch. I was a bit uncertain at the time that the magnets would be able to hold my phone while it’s in it’s case. I also wanted to make sure that I wouldn’t experience any signal loss issues or suffer from any overheating while charging. I found the quickest way to make this work was to take the male end of a microUSB plug and wire it directly into the contacts off the inductive back. After taking apart the microUSB plug from a spare dead cable, you can use a 200 ohm resistor to short the D+ and D- pins on the plug. This allows the device to charge at a higher current, which will in turn charge a bit faster. After soldering it up I used some colored silicone to insulate the back of the plug.

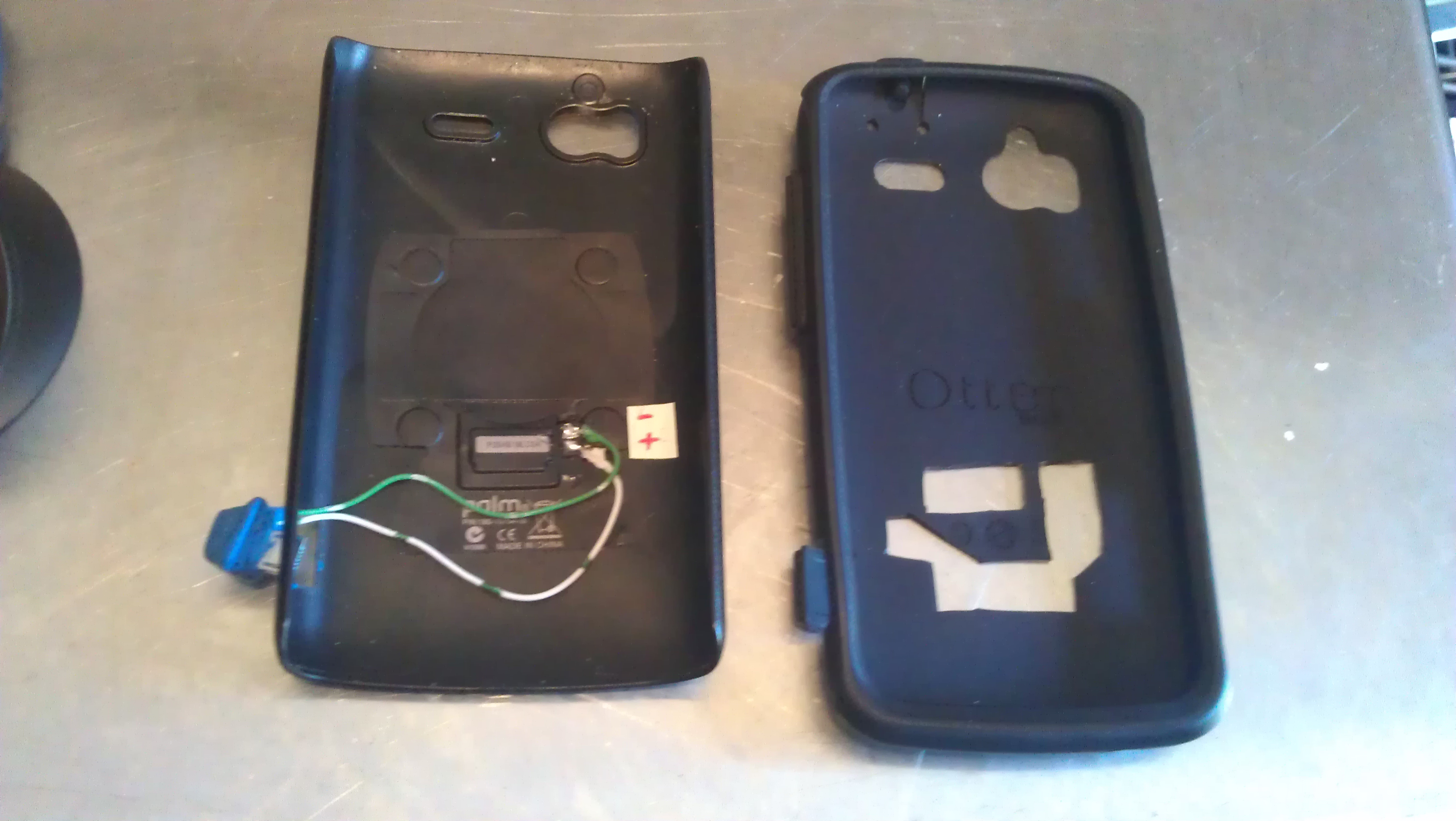

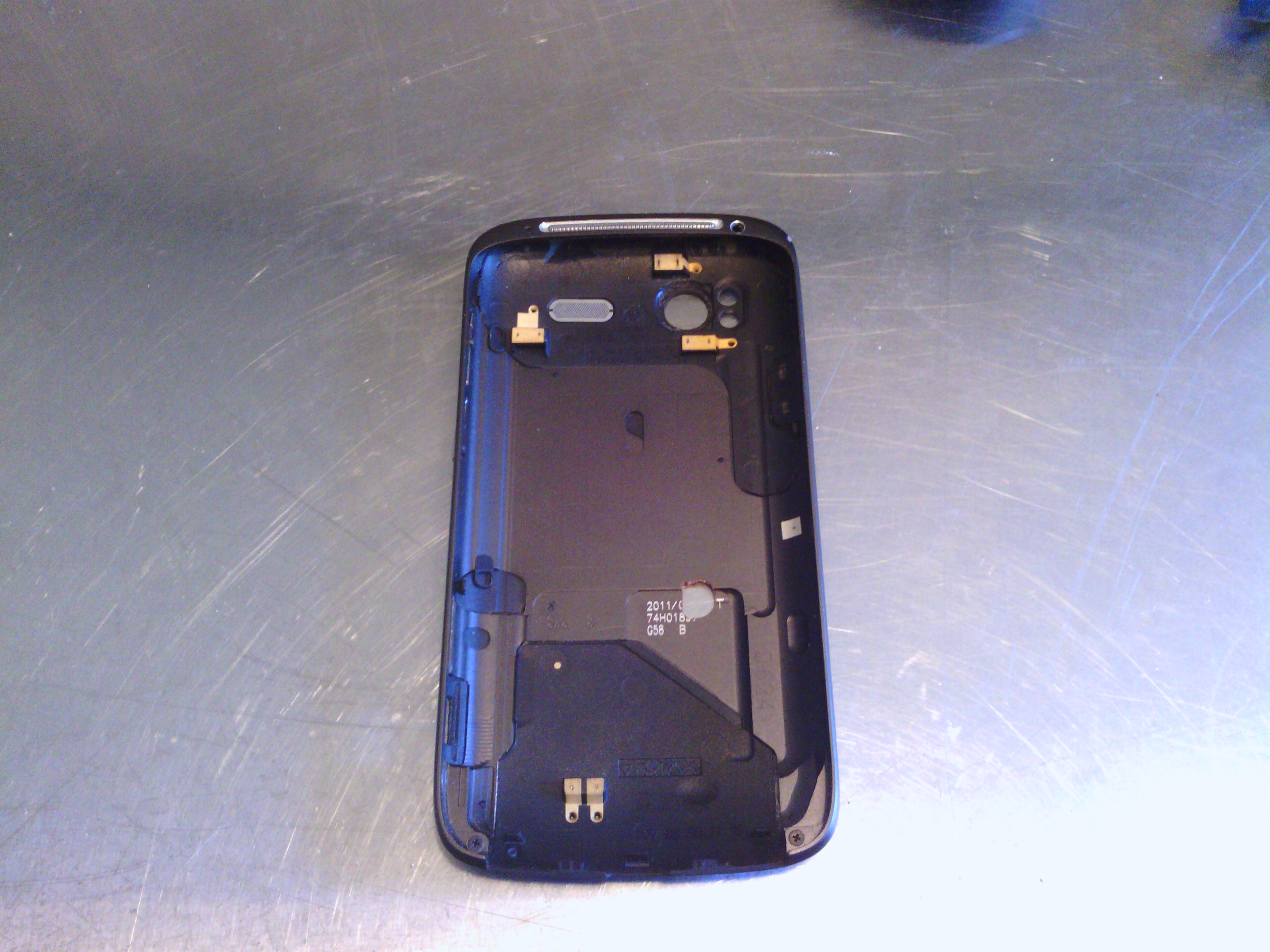

In order to clean this up and make it a bit more permanent and presentable, I have get away from using the charge port and get it through the housing. Unfortunately, the back housing of my phone has a nice metal frame right where I want to mount it. There are also a few antennas I need to avoid. The induction coil is going to have to stay on the back of the case, and somehow get passed thorough the metal housing into the board. I drilled through the back of the case near the sim card holder.

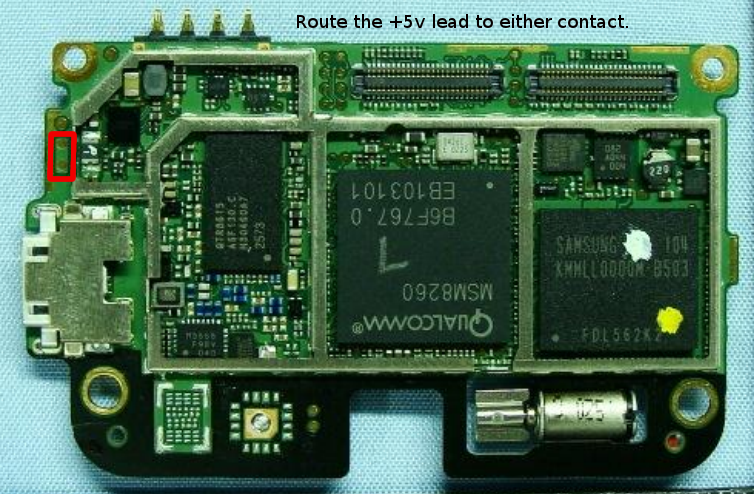

It took a bit of poking and prodding but I was able to find 2 test points that when the motherboard was plugged into a USB charger had +5v showing between the points and the ground plane. No magic smoke was released!

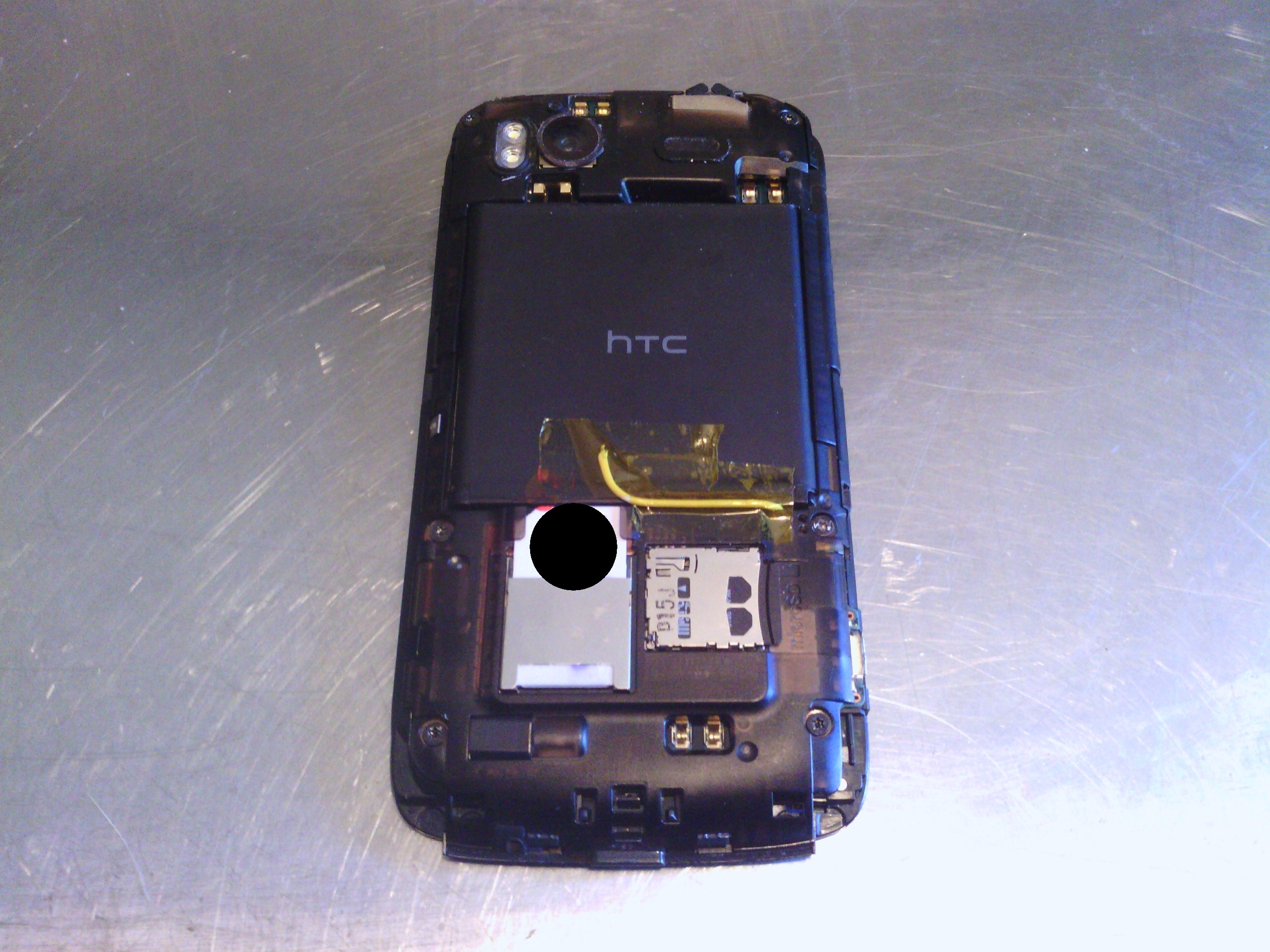

After a bit of soldering I was able to route the positive lead out of the phone housing and is now staged for the next step- going through the housing and into the case. The metal frame of the sim card holder is attached to the ground, so I can use that to complete the circuit. On a normal USB type charge port the ground pin attaches to the ground plane which is usually where all the shields are anchored into so I feel safe doing the same.
For the next stage of the project I’ll have to use some contacts or pogo plugs embedded within some silicone to go from the inside of the phone to the contact points on the induction charger. Ben had the good idea of using some thin copper PCB protoboard to act as thin traces.
To be continued!
